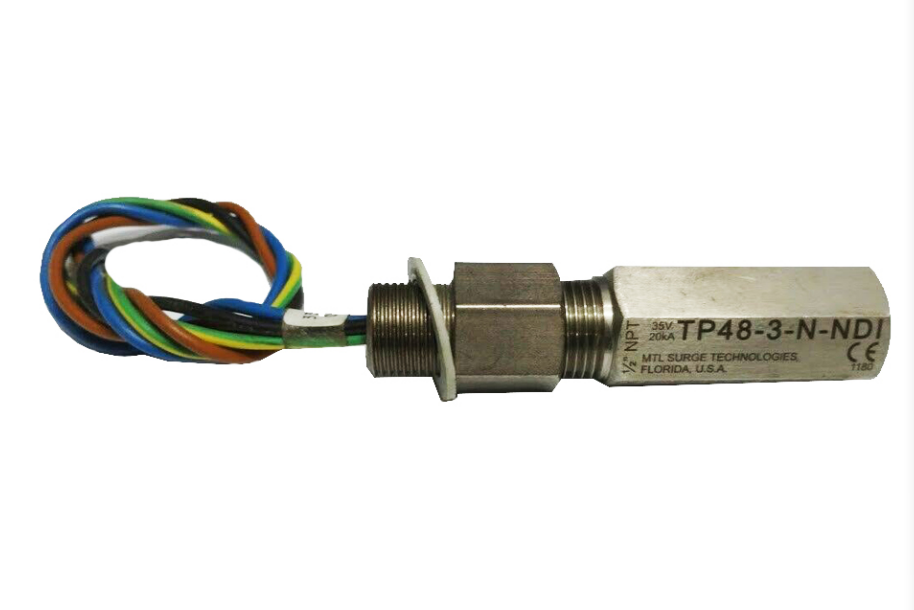

TP48-3-N-NDI MTL Instruments 5% To 95% RH (Non-Condensing) 35V Dc Maximum

Brand Name : MTL

Model Number : TP48-3-N-NDI

Certification : HART

Place of Origin : UK/China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Alipay, Paypal

Supply Ability : 1000pcs per week

Delivery Time : Negotiable

Packaging Details : carton

Manufacturer : MTL Instruments

Product No. : TP48-3-N-NDI

Product type : TP48 Series Surge Protection

Maximum surge current : 20kA peak current (8/20µs waveform)

Working voltage : 35V dc maximum

Bandwidth : 1MHz

Humidity : 5% to 95% RH (non-condensing)

Resistance : No resistance introduced into loop

Contact Now

TP48-3-N-NDI MTL Instruments TP48 Series Surge Protection

MTL TP48 range
Safeguards electronic process transmitters against induced surges and transients from field cabling
• Protects 2, 3 and 4 wire transmitters
• Easy and direct mounting — screws into spare conduit entry
• Intrinsically safe and flameproof to CENELEC standards
• Parallel connection avoids introduction of any resistance into loop
• ATEX approved

SPECIFICATION

• Maximum surge current
20kA peak current (8/20µs waveform)
• Leakage current
Less than 10µA at max. working
voltage
• Working voltage
35V dc maximum
• Bandwidth
1MHz
• Resistance
No resistance introduced into loop
• Ambient temperature limits
-40°C to +85°C
(-40°F to +185°F) (working)
-40°C to +85°C
(-40°F to +185°F) (storage)
• Humidity
5% to 95% RH (non-condensing)
• Casing
316 stainless steel suitable for harsh environments
• Threads
1/2” NPT
• EMC compliance
To Generic Immunity Standards
BS EN 61326-1:2013 for industrial environments

• Electrical Safety
To BS EN 61643-21:2001 for surge protection devices
