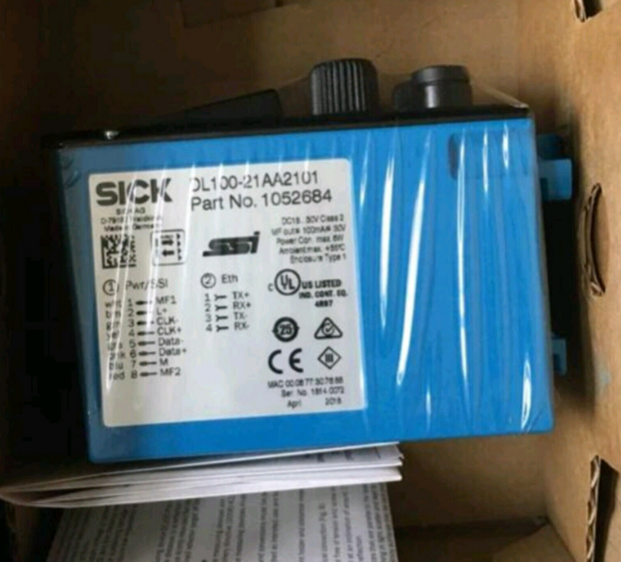

SICK Laser distance sensors: Dx100 DL100-21AA2101
Mechanics/electronics
| Supply voltage Vs | DC 18 V ... 30 V, limit values |
| Ripple | 5 Vpp 1) |
| Initialization time | Typ. 1.5 s 2) |
| Housing material | Metal (Aluminum die cast) |
| Window material | Plastic (PMMA) |
| Connection type | Male connector, M12, SPEEDCON™ compatible |
| Indication | 6 digit 5 x 7 dot matrix display, LEDs |
| Weight | Approx. 800 g (with mounting bracket: approx. 1,600 g) |
| Current consumption | At 24 V DC < 250 mA |
| Dimensions (W x H x D) | 69.4 mm x 82.5 mm x 100.2 mm |
| Modulation frequency | Fix |
| Enclosure rating | IP65 |
| Protection class | III |
Performance
| Measurement range min ... max: | 0.15 m ... 100 m, on “diamond grade” reflective tape |
| Target | Reflector |
| Resolution | 0.1 mm, 0.125 mm, 1 mm, 10 mm, 100 mm |
| Repeatability | 0.5 mm 1) |
| Accuracy | ± 2 mm 2) |
| Response time | 2 ms |
| Output time | Measurement cycle synchronous to PLC request |
| Light source | Laser, red 3) |
| visible red light |
| Laser class | 2, complies with 21 CFR 1040.10 and 1040.11 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014) |
| Typ. light spot size (distance) | 5 mm + (2 mm x distance in m) |
| Max. movement speed | 15 m/s |
| Acceleration (max.) | ≤ 15 m/s² |
Ambient data
| Electromagnetic compatibility (EMC) | EN 61000-6-2, EN 61000-6-4 1) |
| Ambient temperature, operation | –20 °C ... +55 °C 2) |
| –20 °C ... +75 °C, operation with cooling case 2) |
| Ambient temperature, storage | –40 °C ... +75 °C |
| Effect of air pressure | 0.3 ppm/hPa |
| Effect of air temperature | 1 ppm/K |
| Temperature drift | Typ. 0.1 mm/K |
| Typ. Ambient light immunity | ≤ 100,000 lx |
| Mechanical load | Shock: (EN 600 68-2-27) |
| Sine: (EN 600 68-2-6) |
| Noise: (EN 600 68-2-64) |
