HART Multiplexer Master PEPPERL FUCHS Kfd2 Hmm 16

Product Details:
Manufacturer : Pepperl+Fuchs
Product No. : KFD2-HMM-16
Product Type : HART Multiplexer Master

Features:

• 16-channel
• 24 V DC supply (Power Rail)
• HART field device input (revision 5 to 7)
• Up to 15 KFD0-HMS-16 slave units can be connected
• Up to SIL 3 acc. to IEC/EN 61508

Function

This HART Multiplexer Master operates up to 256 analog field instruments. The built-in slave unit in the HART master operates the first 16 field instruments. If more than 16 field instruments are required, up to 15 additional HART Multiplexer Slaves KFD0-HMS-16 can be connected.

The slave units are connected to the master with a 14-pin flat cable. The connector for the ribbon cable is found on the same housing side as the connectors for the interface and the power supply.

The analog signals are separately linked to a termination board via a 26-pin flat cable for each unit. Sixteen leads are reserved for the HART signal of the analog measurement circuits. The remaining 10 leads are sent to ground.

This unit is designed with removable terminals and can be connected to the Power Rail.

Technical data

1. Product Description

    HART Multiplexer Master

2. Functional safety related parameters

    Safety Integrity Level (SIL): SIL 3

3. Supply

    Connection: terminals 17+, 18-

    Rated voltage: 20 ... 32 V DC typical at 100 mA

    Power consumption: max. 3 W

4. HART signal channels (non-intrinsically safe)

    Conformity: HART field device input (revision 5 to 7)

    Connection: 26-pin flat cable for analog connections

                        14-pin flat cable for master-slave connection between KFD2-HMM-16 and KFD0-HMS-16

    Leakage current: < 3 µA at -20 ... 85 °C (-4 ... 185 °F)

    Terminating resistor: external 230 ... 500 Ω standard (up to 1000 Ω possible)

    Output voltage: ≥ 400 mV _ss (with the terminator resistance specified above)

    Output resistance: 100 Ω or smaller, capacitive coupling

    Input impedance: according to HART specification

    Input voltage range: 0.08 ... 4 V _ss ; typ. ± 5.2 V as local reference

5. Interface

    Transfer rate: 9600, 19200, or 38400 Bit/s (selectable with DIL switch (2 and 3) by the user)

    Type: RS-485 , 2-wire multidrop

    Address selection: One of 31 possible addresses selectable per DIL switch (4 ... 8)

6. Indicators/settings

    Control elements: DIP switch

    Configuration: via DIP switches

    Labeling: space for labeling at the front

7. Conformity

    Degree of protection: IEC 60529:2001

8. Ambient conditions

    Ambient temperature: -20 ... 60 °C (-4 ... 140 °F)

9. Mechanical specifications

    Degree of protection: IP20

    Connection: screw terminals

    Mass: approx. 250 g

    Dimensions: 40 x 107 x 115 mm (1.6 x 4.2 x 4.5 inch) (W x H x D) , housing type C1

       Height: 107 mm

       Width: 40 mm

       Depth: 115 mm

    Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001



Related Models:


Company Introduction:
Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, Endress+Hauser, YOKOGAWA,MTL,Allen-Bradley, Pepperl+Fuchs,Rosemount, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, Honeywell, Siemens and etc. If you have any request, please do not hesitate to contact us.


FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.

pepperl fuchs kfd2 hmm 16

HART pepperl fuchs kfd2 hmm 16

kfd2 hmm 16 PEPPERL FUCHS

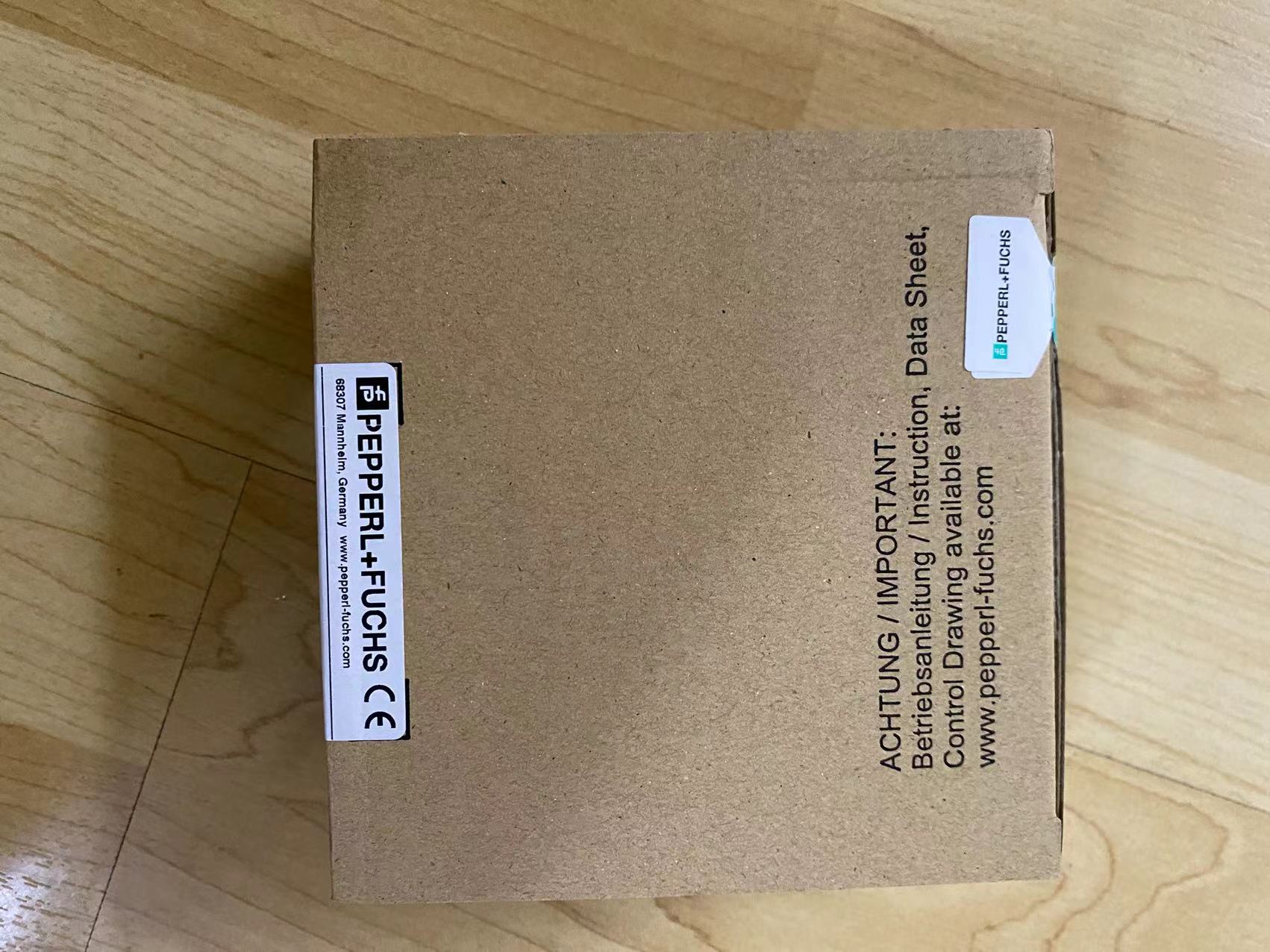

HART Multiplexer Master PEPPERL FUCHS Kfd2 Hmm 16 Images
