PEPPERL FUCHS NMB10-18GH50-E2-V1 Inductive Sensor with Switching Frequency of 0 ... 300 Hz

Brand Name : PF

Model Number : NMB10-18GH50-E2-V1

Certification : ATEX

Place of Origin : Germany

MOQ : 1 piece

Price : USD98.00/PC

Payment Terms : Alipay

Supply Ability : 100pcs per month

Delivery Time : 12-14 weeks

Packaging Details : 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1

Manufacturer : Pepperl+Fuchs

Product No : NMB10-18GH50-E2-V1

Output type : Output type

Output polarity : DC

Switching frequency : 0 ... 300 Hz

Voltage drop : ≤ 2 V

Operating current : 0 ... 200 mA

Length : 63.5 mm

Contact Now

PEPPERL FUCHS NMB10-18GH50-E2-V1 Inductive sensor

General specifications
Switching function		Normally open (NO)
Output type		PNP
Rated operating distance		10 mm
Installation		flush in mild steel
Output polarity		DC
Assured operating distance		0 ... 8.1 mm
Reduction factor r_Al		0.4
Reduction factor r_Cu		0.25
Reduction factor r₃₀₄		0.5 (0.9 of material thickness 2 mm)
Reduction factor r_St37		1
Output type		3-wire
Nominal ratings
Installation conditions
	A	0 mm
	B	16 mm
	C	30 mm
	F	60 mm
Operating voltage		10 ... 30 V
Switching frequency		0 ... 300 Hz
Hysteresis		3 ... 15 typ. 5 %
Reverse polarity protection		yes
Short-circuit protection		yes
Voltage drop		≤ 2 V
Operating current		0 ... 200 mA
Off-state current		≤ 0.1 mA
No-load supply current		≤ 10 mA
Time delay before availability		≤ 40 ms
Switching state indicator		LED, yellow
Limit data
Operating pressure statically		60 bar (870.2 psi) max.
Functional safety related parameters
MTTF_d		655 a
Mission Time (T_M)		20 a
Diagnostic Coverage (DC)		0 %
Compliance with standards and directives
Standard conformity
	Standards	EN IEC 60947-5-2
Approvals and certificates
UL approval		cULus Listed, General Purpose
CCC approval		CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature		-25 ... 85 °C (-13 ... 185 °F)
Mechanical specifications
Connection type		Connector plug M12 x 1 , 4-pin
Housing material		Stainless steel 1.4435 / AISI 316L
Sensing face		Stainless steel 1.4435 / AISI 316L
Degree of protection		IP68 / IP69K
Mass		24 g
Dimensions
	Length	63.5 mm
	Diameter	18 mm
General information
Assembly dimensions		x: 18 mm y: ≥ 4 mm

PEPPERL FUCHS NMB10-18GH50-E2-V1 Inductive Sensor with Switching Frequency of 0 ... 300 Hz

Are the Products Genuine OEM Units?

These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Does Achievers sell to international Non-USA customers?

Yes, Achievers offers services to clients around the globe. In fact, a large portion of our company is international, and we have experience shipping to locations all over the world.

Product Tags:

PEPPERL FUCHS Inductive Sensor

300 Hz Inductive Sensor

NMB10-18GH50-E2-V1 Inductive Sensor

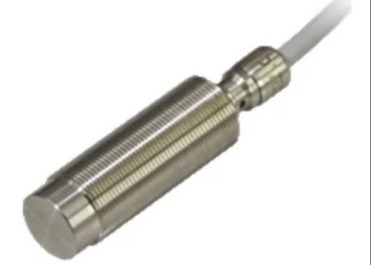

PEPPERL FUCHS NMB10-18GH50-E2-V1 Inductive Sensor with Switching Frequency of 0 ... 300 Hz Images
